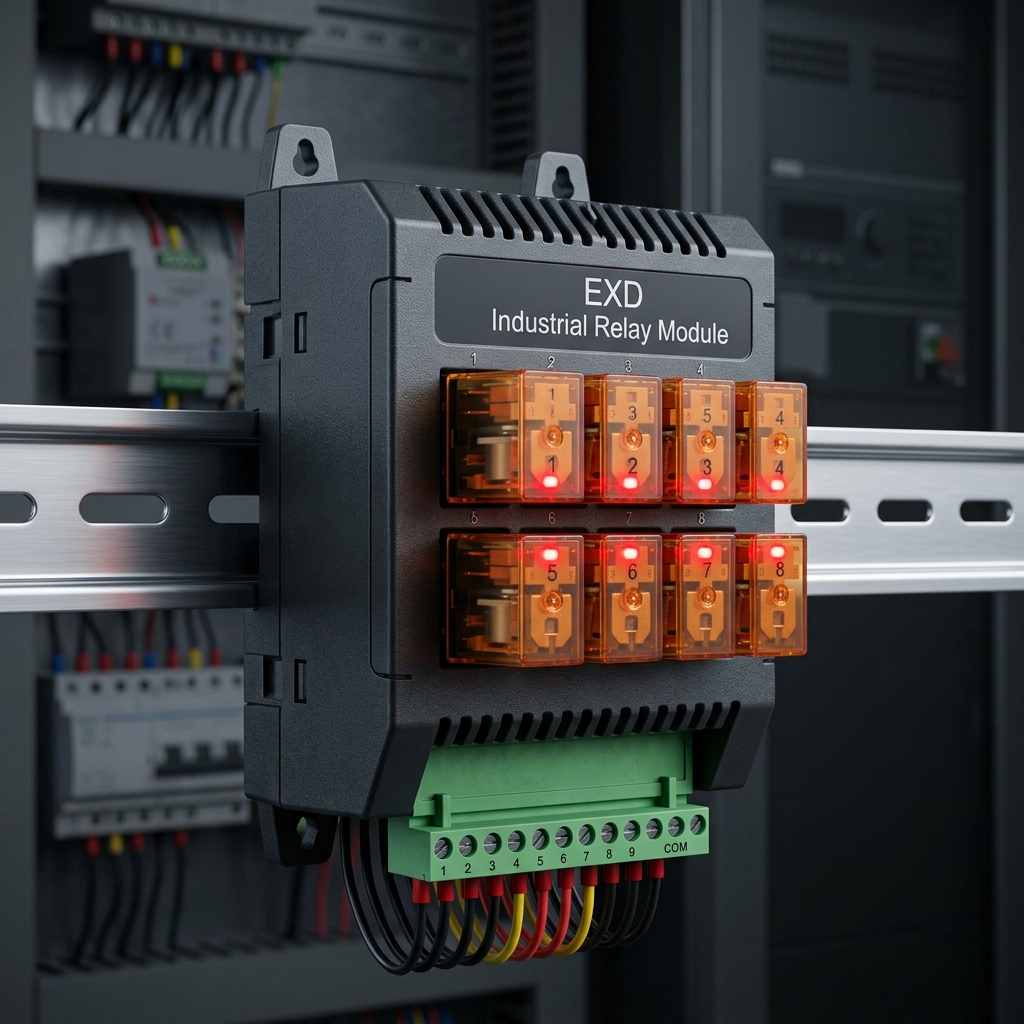

EXD-RC800 8-Channel 16A Relay Module
Industrial-grade 8-channel relay output module designed for high-power load switching in industrial panels, motor control centers, and HVAC systems.
RENDER::EXD-RC800
Industrial Features
8x High-power relay outputs (16A @ 250VAC / 30VDC)
SPDT (Form C) mechanical contacts
Coil suppression with flyback protection
Electrical endurance ≥ 100,000 cycles
3kVrms Galvanic isolation
Replaceable relay design variant
Individual LED contact status indicators
Technical Specifications
| supply Voltage | 24VDC (18–30VDC) |
|---|---|
| power Consumption | <4W (All Relays Active) |
| contact Rating | 16A @ 250VAC / 30VDC |
| contact Type | SPDT (Form C) |
| isolation | 3kVrms galvanic isolation |
| surge Protection | IEC 61000-4-5 compliant |
| communication | RS485 (Modbus RTU Slave) |
| operating Temp | -25°C to +70°C |
| enclosure | DIN Rail Mount (TS35), 72mm Width, IP20 (UL94-V0) |
Telemetry Architecture
Supported Protocols
Modbus RTURS485
Target Applications
- Motor starters
- Industrial heaters
- High-power pumps
- Industrial lighting systems
- Contactor control
