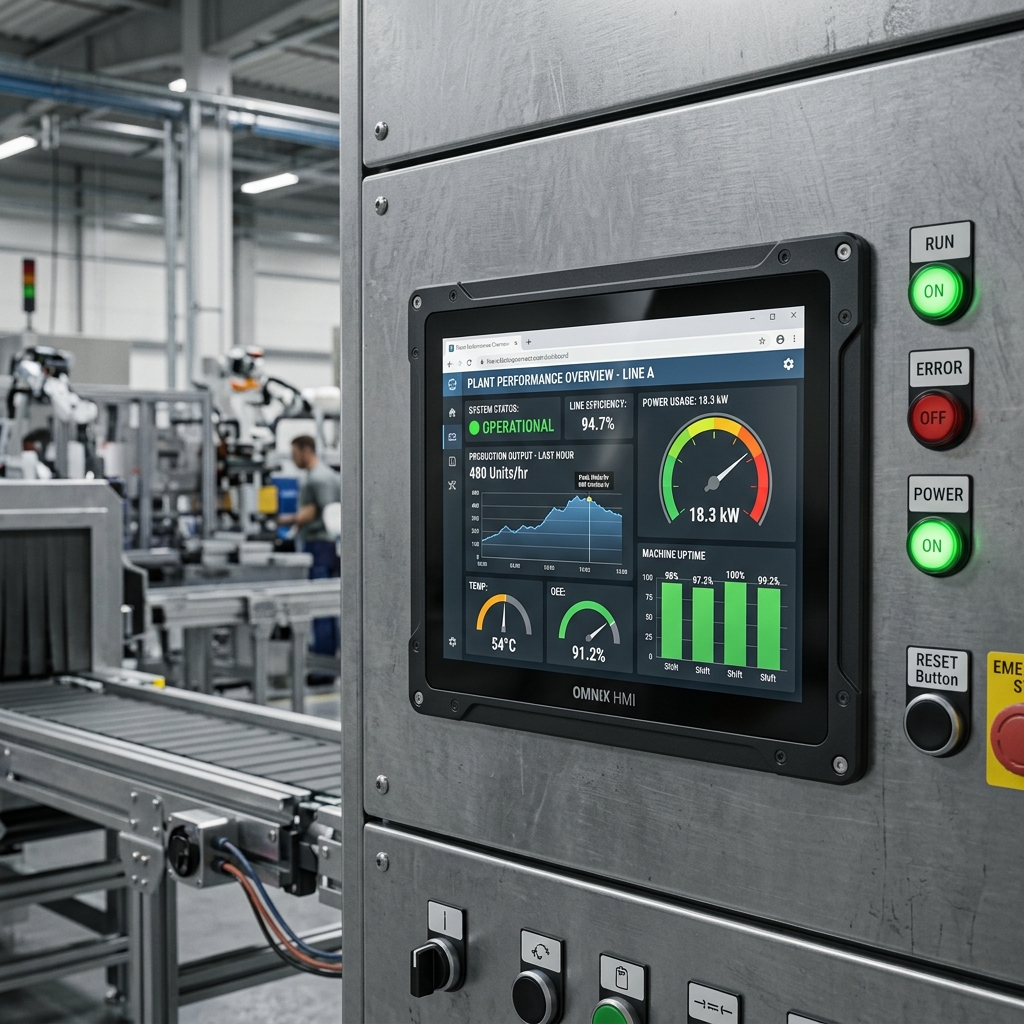

EXD-HMI10 10.1” Industrial Touchscreen HMI
Industrial capacitive touchscreen interface designed for machine-level control, real-time process visualization, and SCADA monitoring in harsh environments.
RENDER::EXD-HMI10
Industrial Features
10.1” TFT LCD WXGA widescreen resolution (1280 x 800)
Capacitive multi-touch high-brightness display (≥400 cd/m²)
Embedded Linux / Real-Time Operating System (RTOS) platform
Web-based dashboard support and HTML5 visualization
Front Panel IP65 dust and water jet protection
Ethernet, RS485, USB, and optional Wi-Fi/LTE
Technical Specifications
| supply Voltage | 24VDC (18–30VDC) with surge protection |
|---|---|
| power Consumption | <12W |
| display Size | 10.1 inches with LED Backlight (50,000 hrs life) |
| resolution | 1280 x 800 WXGA |
| touch Type | Capacitive Multi-Touch |
| brightness | ≥400 cd/m² |
| operating Temp | -20°C to +60°C |
| enclosure | Panel Mount Design, IP65 Front, IP20 Rear |
Telemetry Architecture
Supported Protocols
Modbus RTUModbus TCPOPC UAMQTTHTTP/HTTPS
Target Applications
- Industrial control panels
- Machine visualization
- HVAC air handling SCADA
- Energy management dashboards
