EXD-AI800 Universal Analog Input Module

High-precision 8-channel universal analog input module supporting 4–20mA, 0–10V, and RTD temperature sensors for high-fidelity industrial sensing.

Request Quotation

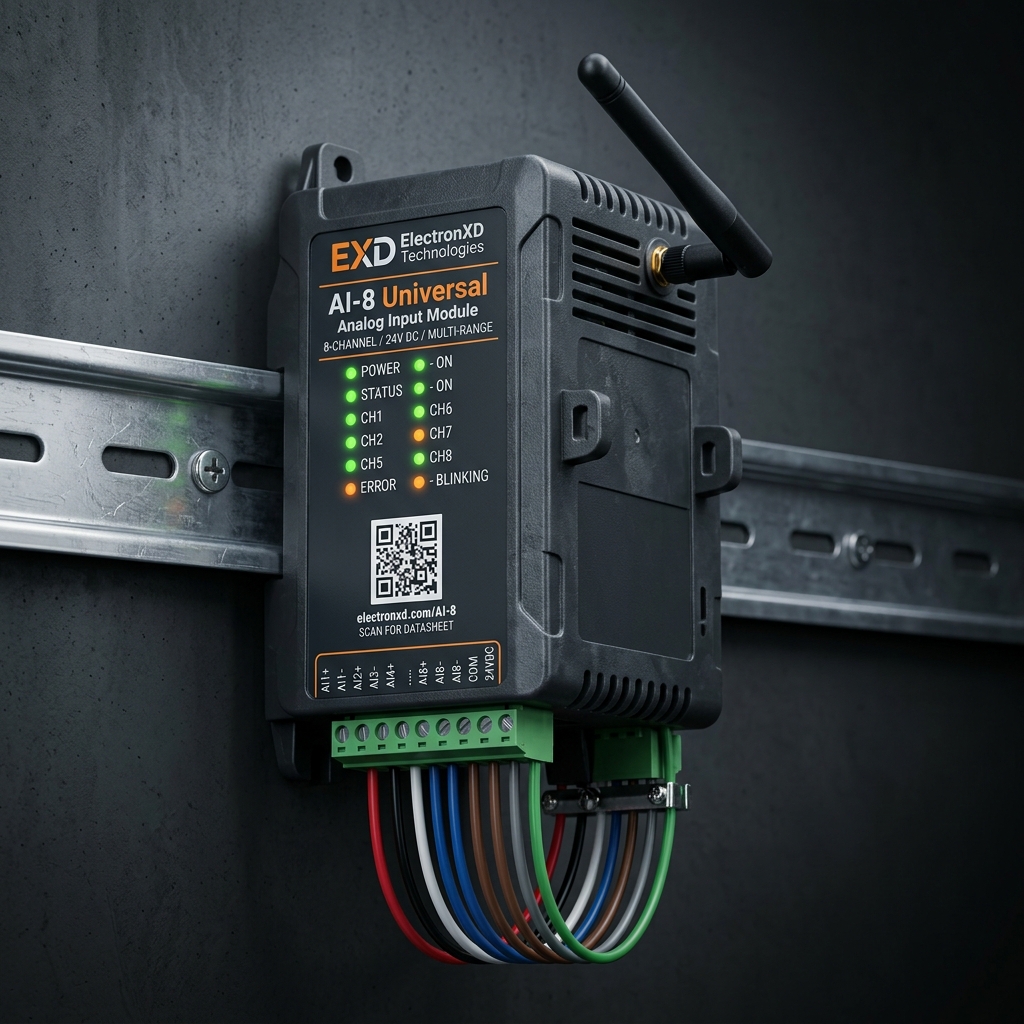

EXD-AI800 Universal Analog Input Module
RENDER::EXD-AI800

Industrial Features

8-Channel Universal Analog Input
4–20mA, 0–10V, and optional PT100/PT1000
16-bit / 24-bit high-precision ADC resolution
Low drift industrial front-end
3kVrms Galvanic communication isolation
DIN Rail mount (TS35, 36mm/72mm width)

Technical Specifications

supply Voltage24VDC (18–30VDC)
power Consumption<4W
input Types4–20mA Current, 0–10V Voltage, PT100/PT1000 RTD
adc Resolution16-bit / 24-bit Delta-Sigma ADC
accuracy±0.1% Full Scale (Typical)
isolation3kVrms galvanic isolation
surge ProtectionIEC 61000-4-5 compliant
operating Temp-25°C to +70°C
enclosureIP20 Enclosure (UL94-V0)

Telemetry Architecture

Sensor Node
Edge AI/Modbus
MQTT Broker
TLS 1.3
PostgreSQL
TimescaleDB
Dashboard
SCADA UI

Supported Protocols

Modbus RTURS485

Target Applications

  • Industrial sensing
  • Process control
  • Remote telemetry
  • Analog data acquisition
