EXD-AO400 Analog Output Module
High-precision 4-channel analog output module designed for process control, actuator positioning, and VFD speed control.

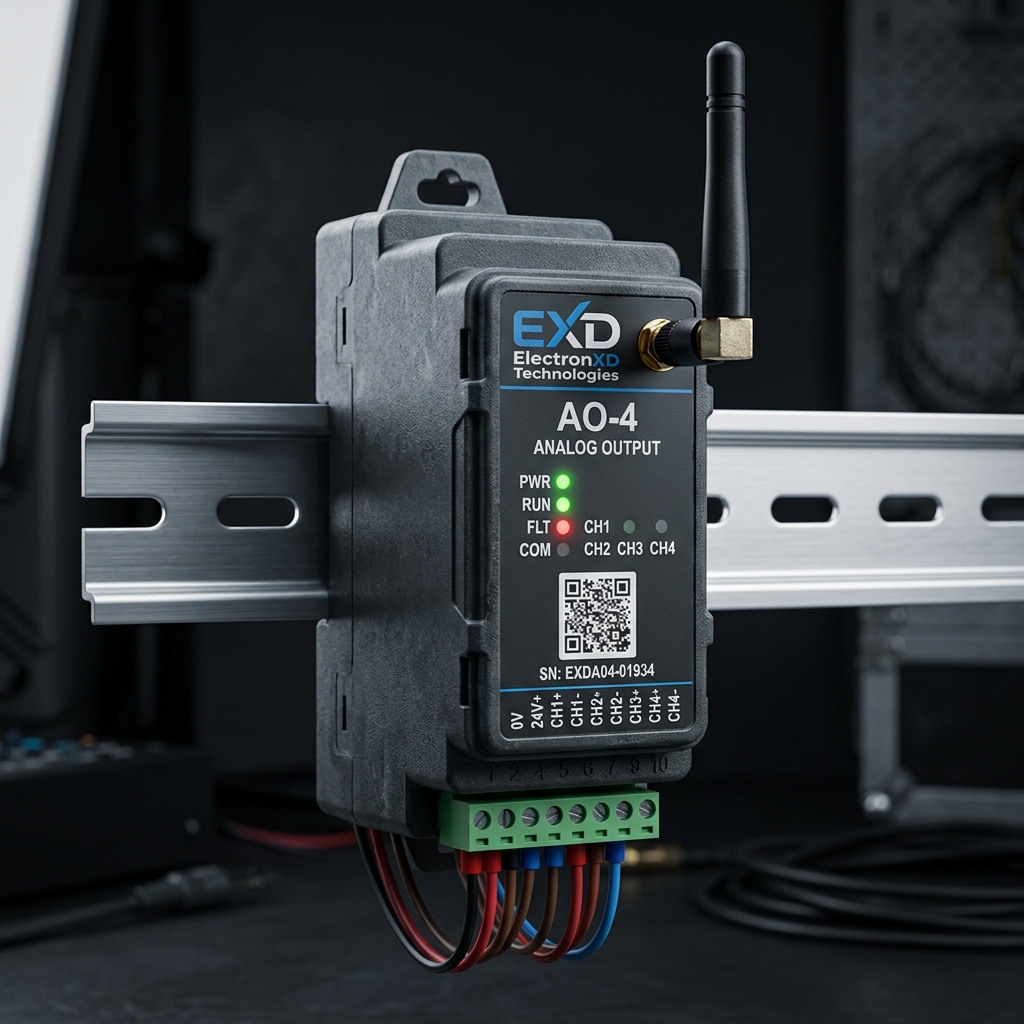

RENDER::EXD-AO400
Industrial Features
4-Channel Analog Output
4–20mA and 0–10V output options per channel
16-bit DAC high-resolution performance
Short-circuit output protection
Configurable fail-safe output state
3kVrms Galvanic isolation
Technical Specifications
| supply Voltage | 24VDC (18–30VDC) |
|---|---|
| power Consumption | <3W |
| output Types | 4–20mA Current, 0–10V Voltage selectable |
| dac Resolution | 16-bit DAC |
| accuracy | ±0.1% Full Scale (Typical) |
| load Capacity | ≤500Ω (Current Mode) |
| communication | RS485 (Modbus RTU Slave) |
| operating Temp | -25°C to +70°C |
| enclosure | IP20 Enclosure (UL94-V0) |
Telemetry Architecture
Supported Protocols
Modbus RTURS485
Target Applications
- VFD speed control
- Control valves
- Actuator positioning
- BMS automation
